Attributes
| Attribute | Value |
|---|---|
| Lift | 10 FT. |
| Capacity | 5 TON |
| Hoist Control | 1-SPEED |
| Hoist Lifting Speed | 12 FPM |
| Power Supply | 230/460V-3PH-60HZ |
| Reeving | 1 PART |
| Suspension | HOOK |
Product Description

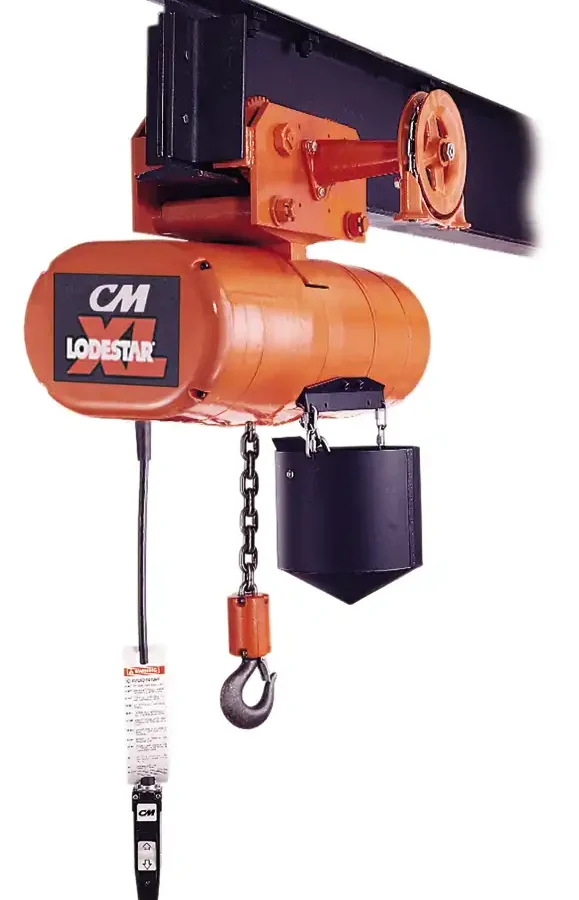

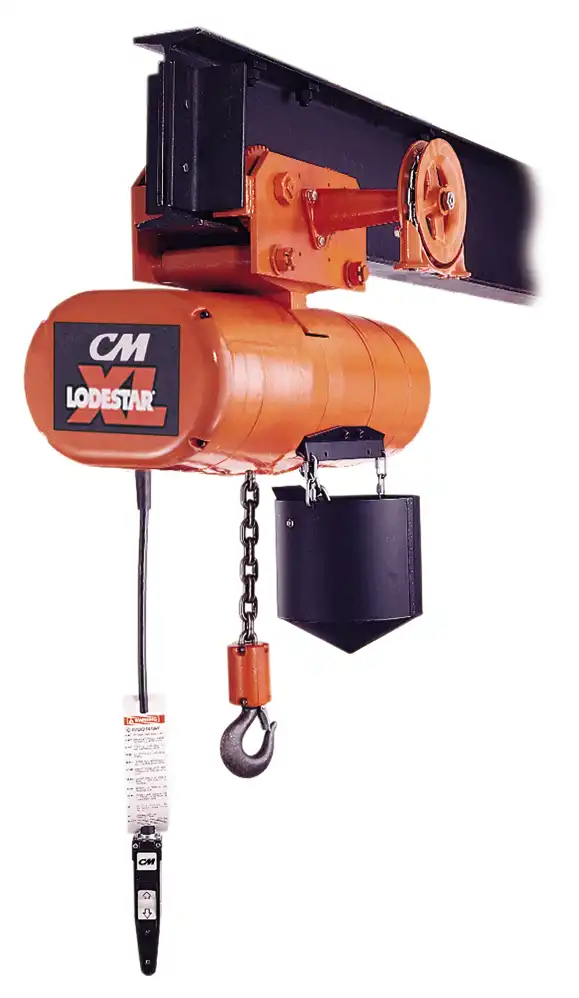

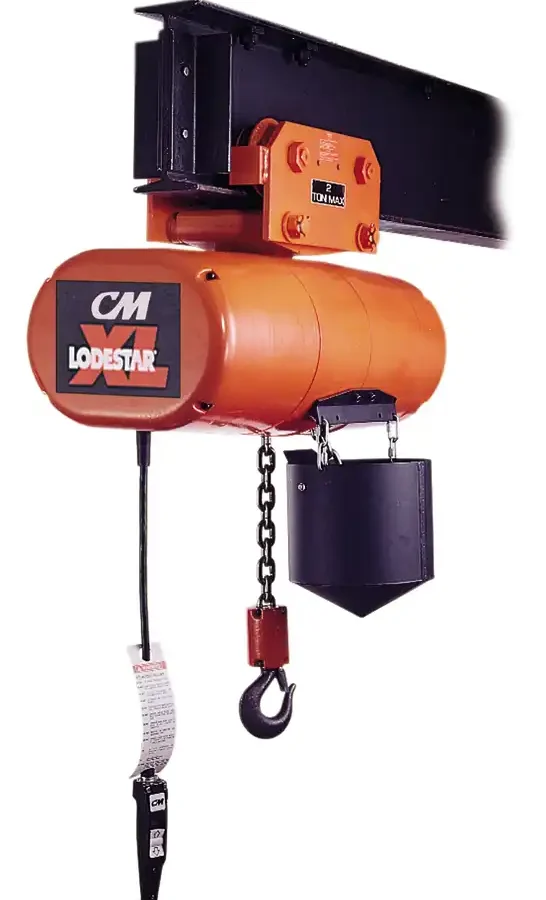

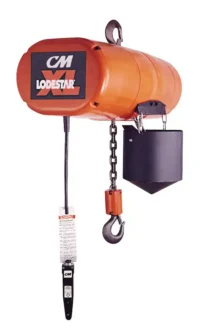

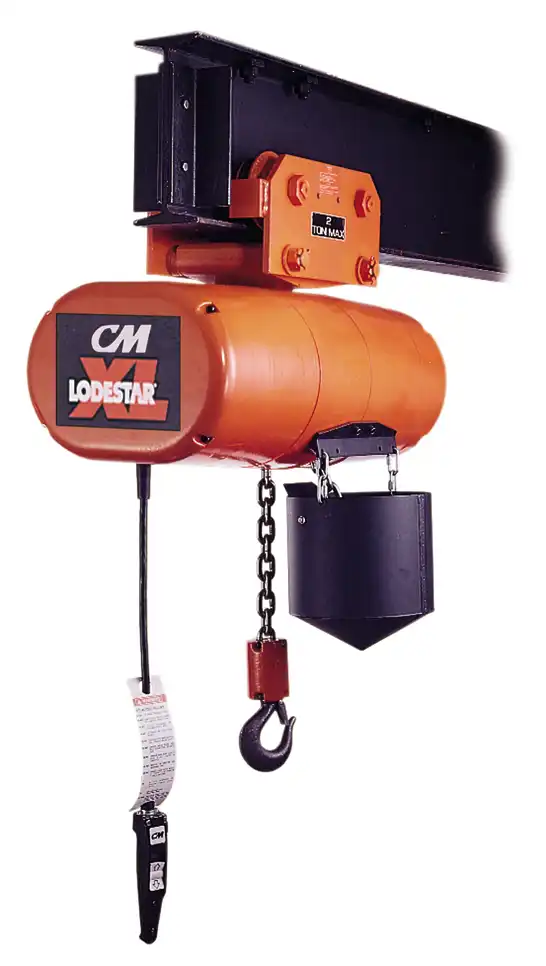

The CM Lodestar XL Electric Chain Hoists features a heavy-duty design with faster speeds, less reeving, and higher capacities than traditional hoists.
Features and Benefits
- Standard Features
Lifting capacities up to 7-1/2 tons. Double reeved units with 3-5 ton lifting capacities. Maximum lifting speed of 30 feet per minute. - Long Life and Smooth Operation
Forged ten-pocket oblique-lay lift wheel for smooth chain operation, constant chain speed, and reduced chain wear. Gearing operated in oil bath for increased lifting life and quiet operation. - Designed with Safety in Mind
Heavy-duty, multiple disc braking system. Rated H-4, heavy-duty. Standard overload protector. Screw-type limit switches. Thermally protected motor. Factory tested at 125% of rated capacity. Made in U.S.A.
